Search found 12 matches

by kesterlester
Sat Aug 22, 2020 11:49 am
Forum: Pyboard D-series
Topic: A question about VIN+VUSB conflict without diode protection ...
Replies: 1
Views: 169

A question about VIN+VUSB conflict without diode protection ...

Among the options for powering the D-series boards which are mentioned on the standard reference page are two I want to highlight: Providing 3.2V-4.8V on VIN. Powering over the Micro USB connector, I intend (intended?) to use an encapsulated 3.3V power supply to power a D-series (mounted as a daught...
by kesterlester
Sat Jun 27, 2020 8:02 am
Forum: Pyboard D-series
Topic: PYBD WBUS connector
Replies: 22
Views: 3741

Re: PYBD WBUS connector

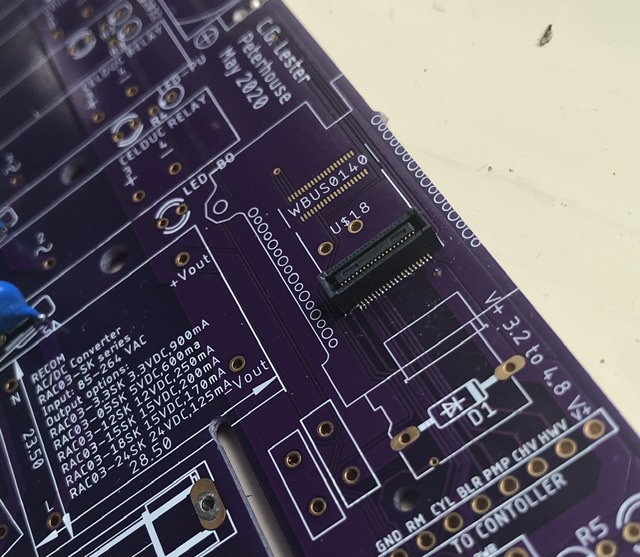

I made a motherboard with two wbus receptacles into which a pyboard-d connects as a controller. Unfortunately the first time I tried to unplug the pyboard, one of the wbus receptacles disintegrated, leaving about 50% of its pins soldered to the motherboard and free of the plastic casing, while the o...
by kesterlester
Fri May 08, 2020 1:56 pm
Forum: Pyboard D-series
Topic: PYBD WBUS connector
Replies: 22
Views: 3741

Re: PYBD WBUS connector

Attached is mashed-together image where I overlaid a pyboard D (both sides semi transparent) onto a 50mil grid to help me better visualise where the WBUS connectors are relative to other things on the board. I couldn't find something similar pre-existing. This is just done by eye, so take it with a ...
by kesterlester
Thu May 07, 2020 7:57 pm
Forum: Pyboard D-series
Topic: Pyboard D-Series and CAN Bus
Replies: 4
Views: 814

Re: Pyboard D-Series and CAN Bus

Just a thought: did you include a line:

Code: Select all

pyb.Pin('EN_3V3').on()
enable the PYBD 3.3V rail for the transceiver to work? I don't see such a line in your code. See discussion here:

viewtopic.php?f=20&t=8137
by kesterlester
Thu May 07, 2020 7:24 pm
Forum: Pyboard D-series
Topic: PYBD WBUS connector
Replies: 22
Views: 3741

Re: PYBD WBUS connector

I couldn't find any information in the docs. I ordered these DF40 series Hirose connectors and they fit my pyboard - 40pin male plug that is on the pyboard: https://www.digikey.com/products/en?keywords=h11624ct - 40pin female socket that is on the WBUS DIP68 breakout: https://www.digikey.com/produc...
by kesterlester
Wed May 06, 2020 9:16 pm
Forum: Pyboard D-series
Topic: Choosing between powering options.
Replies: 4
Views: 708

Re: Choosing between powering options.

Thank you, all, for the various pieces of advice. Fortunately the board is not going to be streaming anything via wifi. It will be controlled/configured by wifi, but only very occasionally (e.g. to receive updates to parameters, or to file some hourly reports on sensor vales, etc). I expect I can th...
by kesterlester
Wed May 06, 2020 9:04 pm
Forum: Pyboard D-series
Topic: Pyboard D-Series and CAN Bus
Replies: 4
Views: 814

Re: Pyboard D-Series and CAN Bus

About 4 years ago I tried something similar with a non-D-series pyboard. (I wanted to probe the signals being sent to my car's electric windows and locks which had issues.) I am sorry to report that ultimately I failed. As far as I can remember I was neither able to send nor receive anything on the ...
by kesterlester
Sun May 03, 2020 9:06 pm
Forum: Pyboard D-series
Topic: Choosing between powering options.
Replies: 4
Views: 708

Choosing between powering options.

I am building a pyboard-D based device which will have ample access to mains-derived power which will almost certainly have to be delivered either as: 5V to VUSB, or 3.3V to VIN, or something else if none of those above are thought to be a good idea for my application in the long term. In both cases...
by kesterlester
Sun Nov 03, 2019 4:10 pm
Forum: MicroPython pyboard
Topic: LiPo powering and charging
Replies: 2
Views: 861

Re: LiPo powering and charging

Thank you, christmas9, that's very helpful. I hope others will find it useful too.
Best wishes for the rest of your weekend!
by kesterlester
Sat Nov 02, 2019 6:44 pm
Forum: MicroPython pyboard
Topic: LiPo powering and charging
Replies: 2
Views: 861

LiPo powering and charging

I have a few pyboards. I am mostly interested in advice relevant to LiPo powering of the PYBLITEv1.0 (since that is the board I have built into a project) however most of the posts on this forum relate to powering either the PYBV1.0 and the PYBV1.1 which were subtly different in their use of the VBA...
