LCD160 inside aluminium housing side connected to Pyboard

Post by rcolistete » Mon Mar 06, 2017 7:11 pm

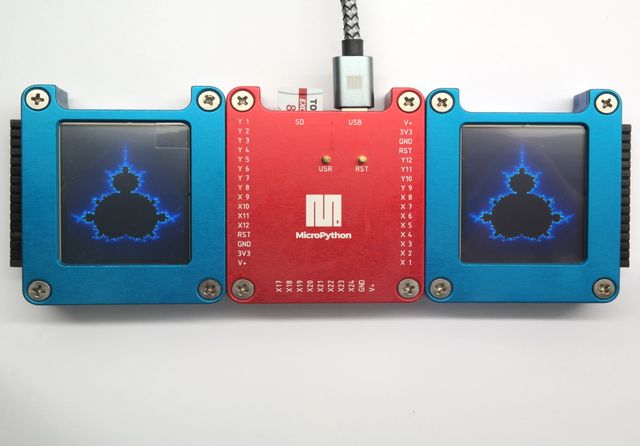

Following the fantastic work of making driver and applications for the official LCD160CR colour display, here are some photos of LCD160CR side connected to Pyboard, both inside aluminium housing (in many colours) :
2 LCD160 inside aluminium housing side connected to Pyboard

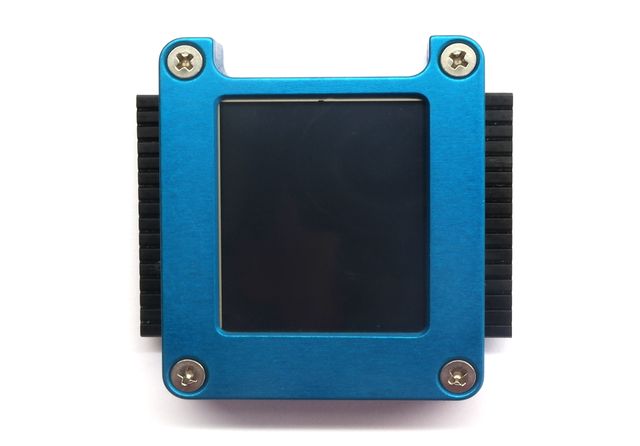

LCD160CR with aluminium housing
The LCD160CRv1.0 will have pre-soldered right-angled female headers to plug on the side of a Pyboard.

The MicroPython online store will have them (LCD160CR with side headers & aluminium housing with top opening) after some user documentation is ready.

Hope this teasing will be brief and we can buy the kit ASAP.

User avatar
mcauser
Posts: 356
Joined: Mon Jun 15, 2015 8:03 am

Re: LCD160 inside aluminium housing side connected to Pyboard

Post by mcauser » Tue Mar 07, 2017 4:31 am

Beautiful. Well done guys.

User avatar
pythoncoder
Posts: 3304
Joined: Fri Jul 18, 2014 8:01 am
Location: UK
Contact:

Re: LCD160 inside aluminium housing side connected to Pyboard

Post by pythoncoder » Wed Mar 08, 2017 6:46 am

Impressed! :D
Peter Hinch

User avatar
rcolistete
Posts: 133
Joined: Thu Dec 31, 2015 3:12 pm
Location: Brazil

Re: LCD160 inside aluminium housing side connected to Pyboard

Post by rcolistete » Sun Mar 26, 2017 11:11 pm

The LCD160 housing is available on MicroPython Store :
https://store.micropython.org/store/#/p ... ING-LCDB-1
note that it includes "2x 16-way right angled female header pins (for connecting to a pyboard in a housing with closed lid)".

The Pyboard compatible housing is the closed lid one :
https://store.micropython.org/store/#/p ... USING-CB-1
which includes "right-angled male headers; 2 of 16-way and 1 of 10-way (not pictured)".

So, these two housings, with the LCD160 :
https://store.micropython.org/store/#/p ... D160CRv1_0
and any Pyboard, plus some soldering, is all you need to have :

User avatar
mcauser
Posts: 356
Joined: Mon Jun 15, 2015 8:03 am

Re: LCD160 inside aluminium housing side connected to Pyboard

Post by mcauser » Mon Mar 27, 2017 2:59 am

All for just £115.08 (2 cases, pyb and lcd)

User avatar
vitormhenrique
Posts: 17
Joined: Tue Jan 15, 2019 3:07 pm

Re: LCD160 inside aluminium housing side connected to Pyboard

Post by vitormhenrique » Tue Jan 15, 2019 3:11 pm

Does anyone know if the design of the cases are available? I needed the cad design and would love not to redraw everything... :)
